12.5 dBi Flat panel antenna

A-2400-01



Electrical parameters
Frequency range 2320-2500MHz
Gain(at center frq.) 12.5 dBi
VSWR < 1.5
3dB beam width E:60 H:60
Front-to-back ratio >15dB
Impedance 50 Ohm
Max input power 50 W
Polarization Linear (V or H)
Mechanical parameters
Cover material White PVC
Elements material Copper,Aluminium
Holder material Galvanised steel
Mast clamp 25-50 mm
Temperature -30C - +60C
Cable/Connector N female or TNC female
Dimensions 130x130x55 mm
Weight 600 g

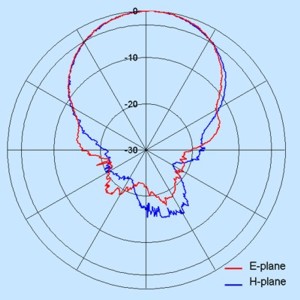

Radiation pattern: Mounting:
